Additional Info: Rack pencil N030718 – 3D model (*.gsm+*.3ds) for interior 3d visualization.
Tag: ruler
-
Vernier Caliper 3D Model
vernier caliper scale gauge gage measure measuring tool precision metalworking mechanical engineering textures materials ruler
-
Outside Caliper 3D Model
OUTSIDE CALIPER=================================- Modeled in Blender.- Preview image rendered using cycles.- All scene are included in .blend files.- Poly count are before sub division- Great for close up render.- All parts and materials are logically named.OTHER FORMATS=================- 3ds MAX- COLLADA (.dae)- Autodesk FBX- OBJ
-
Inside Caliper 3D Model
INSIDE CALIPER=================================- Modeled in Blender.- Preview image rendered using cycles.- All scene are included in .blend files.- Poly count are before sub division- Great for close up render.- All parts and materials are logically named.OTHER FORMATS=================- 3ds MAX- COLLADA (.dae)- Autodesk FBX- OBJ
-
2 1/4″ Circle Ruler 3D Print Model
Summary
This is a quilting ruler for free-motion quilting. I made this for my wife, who blogs here. She uses it to quilt orange-peels. I’m still not entirely sure what those are, but she seems to like them. This apparently works pretty well for that purpose.
The ruler has a hole in the middle to aid holding in place.
Print Settings
Printer Brand:
Prusa Printer:
i3 MK2S Rafts:
No Supports:
No Resolution:
0.15mm (but 0.2 or even higher would probably work fine) Infill:
15%
How I Designed This
All done in Fusion 360, the entire thing is driven by a single dimension in the first sketch, so it should be relatively easy to alter the print to whatever size you need. I just used the built in text tool in Fusion for the text, the “1/4” bit is just the unicode character. -
Vernier Caliper 3D Model
vernier caliper scale gauge gage measure measuring tool precision metalworking mechanical engineering textures materials ruler
-

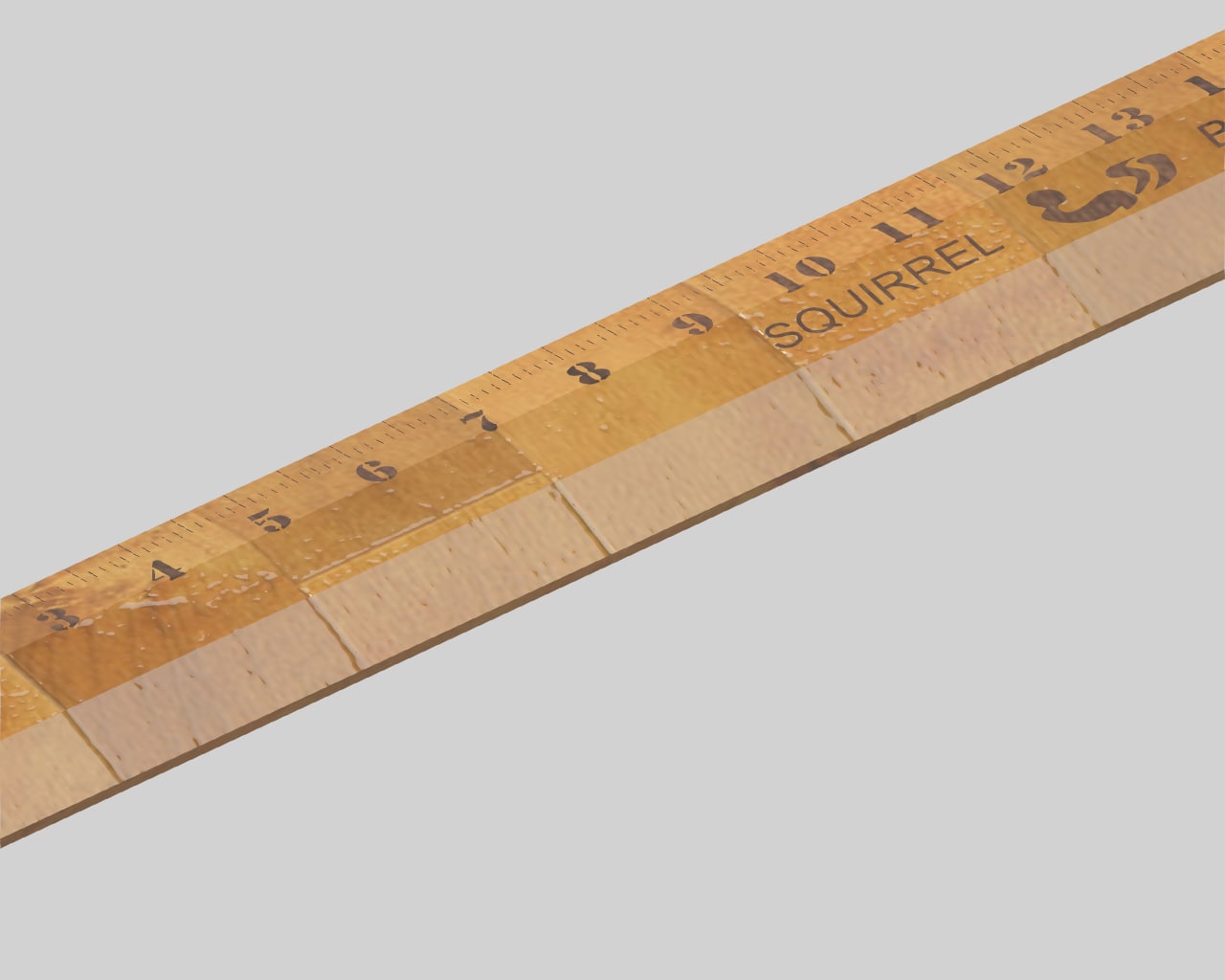

Ruler 3D Model
Model is game readyTexture:- Normal map- Roughness- Height- AO- Base ColorSize texture: 4096 * 4096
-
Trapezoid Ruler 3D Print Model
Here´s a small geometric tool which will not only fit into every pencil case, but also in every small pocket – a trapezoid ruler. Without any numbers on it, you can still draw straight lines, as well as a 45 degree, a 60 degree, a 120 degree and a 135 degree angle. Print it with transparent filament and you will still be able to see the drawn lines on the paper when holding the ruler onto it.
-
T-Square 3D Model
TSquare T Square Ruler Rule Architect Engineer Architecture Drawing board Drafting Draftsman design plot technical cm meter metre inch measure scale
-
Extruder Filament Feed Calibration Ruler 3D Print Model
Summary
A ruler designed to mark the filament at 15 cm before feeding and reading off the actual length fed afterwards.
The filament snaps into the bottom and top of the ruler and fits into the grove to make reading off the length easier.
The length of the ruler is 15 cm with a ledge at the top that can be used as a guide for a sharp razor mark or marker line.
The markings on the ruler are in mm of actual fed filament to be read off where the mark lines up after feeding 10 cm of filament through the extruder.
Print Settings
Printer:
TEVO Little Monster Rafts:
Doesn’t Matter Supports:
No Resolution:
0.2 mm layer height Infill:
30%, not critical Notes:
I printed mine with ABS but see no reason why this would not work in PLA.
Print settings
0.2 mm layer height
30% infill, not critical
no support, already included in the model
raft does not matter
Post-Printing
You need to clip off the tiny support holding the end of the clamp at the bottom of the ruler.
How I Designed This
After realizing that the extruder feed accuracy needs to be tested for new filaments I decided to make a ruler designed for the task that allows easy marking and measuring of the extruder filament feed length and does not require three hands to hold the filament in place.
I am new to 3D printing and find Fusion 360 to be the easiest to use when taking an idea to a working model.
I use parameterized dimensions to allow easy tweaking and reducing the model size for faster test prints.Custom Section
Marking 15 cm before filament feed
Snap the filament into the top and bottom clamps of the ruler and press into the grove along the scale.
With the bottom of the ruler resting on the extruder intake mark off 15 cm using the top of the ruler as a guide. Only the bottom of the mark is relevant so don’t worry about how thin it is.
Reading actual feed length
After feeding 10 cm of the filament with:
G92 E0; reset extruder origin
G1 E100 F120; feed 10 cm of filament at 120 mm/min (adjust this to your usual feed rate
G92 E0; reset extruder origin
Read off the actual length from the bottom of the mark aligning with scale printed on the ruler. Numbers are in mm of actual feed. In the image, I adjusted my extruder steps/mm to compensate for always underfeeding by 5mm on 100mm feed so it is showing 100mm. -
Ruler 3D Model
The model can be used to visualize repair shops, in the industrial sector.
**************************************
Originally modelled in SolidWorks2016.
Final images rendered with 3ds Max 2016 + V-Ray.
**************************************
Model:
6 objects,4 materials (VRay standard materials)
Geometry: Polygonal Tris only
**************************************
**************************************
File formats:
– 3ds Max 2013 with V-Ray material;
– 3ds Max 2016 with V-Ray material;
– obj- no textures;
– Solidworks 2016;
-and other formats
Every model has been checked with the appropriate software.
**************************************
Also check out my other models, just click on my user name to see complete gallery -
Builder Cartoon Character
3D Cartoon builder with ruler and trowel. Suitable for animation.Base texture for body and clothes: id, basecolor, metallic, normal, roughness. Resolution 2048×2048.50480 polygons51873 points
