The R550 Magic is a short-range missile designed in 1968 by French company Matra to compete with the American AIM-9 Sidewinder.
Tag: usaf
-
GULFSTREAM AEROSPACE GULFSTREAM IV Paf 3D Model
The Gulfstream G450 is not only the best large-cabin, long-range business jet in its class, it’s also a direct descendent of the storied GIV-series aircraft, the best-selling business jet in the world. By the time production of the GIV-series ceased in 2002, Gulfstream had turned out over 500 of these world-class airplanes.The texture is for PAF.
-
C-130 USAF 3D Model
The C-130 Hercules is a four-engine turboprop military transport aircraft.A highly detailed model of C-130 for USAF 37 AS,86 AW. All flight controls like elevators, ailerons, flaps, rudder and rear cargo door have slider controls for 3ds Max version. Take-off and landing would be easily realize using slider control under 3ds Max. Considerable details have been added to the inside of the rear cargo.The propeller’s rotating effect has been added to 3ds Max version. To realize it, just unhide the roter set and hide the propeller.The model is originally made in 3ds Max 9. The close-up render for other formats might need mesh smooth modifier.The render scene are not included.
-
YF-23 3D Model
The Northrop/McDonnell Douglas YF-23 was a prototype fighter aircraft designed for the United States Air Force. It was passed over in favor of the YF-22.
-
F-104 Starfighters 3D Model
Because of its physical appearance and performance, the F-104 has often been called the ‘missile with a man in it.’ The design was a product of the Korean War, and was unique in several respects. The encounters with the MiG-15 in Korea caused a strong outcry among Air Force fighter pilots for a cheap, lightweight, maneuverable, high-performance fighter to confront future Soviet fighters. The result was the F-104, a fighter that overemphasized rate of climb and brute speed. Intended as a point defense interceptor, range was sacrificed for rate of climb. Range, however, could be extended using external tanks and in-flight refueling. It used an exceptionally small wing span of only 21 feet, and provided low speed lift through air bled from the engine and vented over the wing. Designed as a supersonic superiority fighter, the F-104 was produced in two major versions. Armed with a six-barrel M-61 20mm Vulcan cannon it served as a tactical fighter and, equipped additionally with heat-seeking Sidewinder missiles, as a day-night interceptor. The USAF procured about 300 Starfighters in one- and two-seat versions. The texture is for JASDF.
-
F-104 3D Model
Because of its physical appearance and performance, the F-104 has often been called the “missile with a man in it.” The design was a product of the Korean War, and was unique in several respects. The encounters with the MiG-15 in Korea caused a strong outcry among Air Force fighter pilots for a cheap, lightweight, maneuverable, high-performance fighter to confront future Soviet fighters. The result was the F-104, a fighter that overemphasized rate of climb and brute speed. Intended as a point defense interceptor, range was sacrificed for rate of climb. Range, however, could be extended using external tanks and in-flight refueling. It used an exceptionally small wing span of only 21 feet, and provided low speed lift through air bled from the engine and vented over the wing. Designed as a supersonic superiority fighter, the F-104 was produced in two major versions. Armed with a six-barrel M-61 20mm Vulcan cannon it served as a tactical fighter and, equipped additionally with heat-seeking Sidewinder missiles, as a day-night interceptor. The USAF procured about 300 Starfighters in one- and two-seat versions. The texture is for Germany Marine.
-
X-47 3D Model
X-47B Joint Unmanned Combat Air Systems (J-UCAS) aircraft, the world’s first unmanned surveillance attack aircraft that can operate from both land bases and aircraft carriers. Production is taking place in the St. Louis, Mo., manufacturing facility of Northrop Grumman’s teammate, GKN Aerospace. GKN is responsible for both the design and fabrication of the X-47B’s forward fuselage.The Defense Advanced Research Projects Agency (DARPA)/U.S. Air Force/U.S. Navy J-UCAS program will demonstrate the technical feasibility and operational utility of low-observable-or “stealth” -land- and sea-based unmanned surveillance attack aircraft, and provide the Air Force and Navy the option to acquire these systems early in the next decade.
-
B-29 3D Model
Boeing’s B-29 Superfortress was the most sophisticated, propeller-driven, bomber to fly during World War II, and the first bomber to house its crew in pressurized compartments. Boeing installed very advanced armament, propulsion, and avionics systems into the Superfortress. During the war in the Pacific Theater, the B-29 delivered the first nuclear weapons used in combat. On August 6, 1945, Colonel Paul W. Tibbets, Jr., in command of the Superfortress ‘Enola Gay,’ dropped an atomic bomb on Hiroshima, Japan. Three days later, Major Charles W. Sweeney piloted another B-29 named ‘Bockscar’ and dropped a second atomic bomb on Nagasaki, Japan. On August 14, 1945, the Japanese accepted Allied terms for unconditional surrender. After the war, B-29s were adapted for several functions, including in-flight refueling, anti-submarine patrol, weather reconnaissance and rescue duty. The B-29 saw military service again in Korea between 1950 and 1953, battling new adversaries: jet fighters and electronic weapons. The last B-29 in squadron use retired from service in September 1960.
-
B-17 3D Model
The B-17 was a low-wing monoplane that combined aerodynamic features of the XB-15 giant bomber, still in the design stage, and the Model 247 transport. The B-17 was the first Boeing military aircraft with a flight deck instead of an open cockpit and was armed with bombs and five .30-caliber machine guns mounted in clear ‘blisters.’ The B-17E, the first mass-produced model Flying Fortress, carried nine machine guns and a 4,000-pound bomb load. It was several tons heavier than the prototypes and bristled with armament. It was the first Boeing airplane with the distinctive — and enormous — tail for improved control and stability during high-altitude bombing. Each version was more heavily armed. In the Pacific, the planes earned a deadly reputation with the Japanese, who dubbed them ‘four-engine fighters.’ The Fortresses were also legendary for their ability to stay in the air after taking brutal poundings. They sometimes limped back to their bases with large chunks of the fuselage shot off.
-
Fokker DR1 Triplane Red Baron 3D Model
During the Great War air combat became the stuff legends were made of. The names and exploits of ace fighters were household names and newspapers printed the latest results of air duels between the German and Allied air forces. Rate of climb and general agility were essential in these aerial combats. After the Sopwith Tri-plane the Luftwaffe had Fokker design and build their own tri-plane, code named DR-1. Possibly the most famous fighting ace of the Great War was Baron Von Richthofen, who led Jagdeskader N¦ 1. He was nicknamed the Red Baron, after the color of the fighter planes he personally flew. The Red Baron was extremely pleased with the Fokker Tri-plane and he managed to increase his duel victories by several before being shot down himself. The Red BaronÆs Tri-plane model is made of silk fabric stretched across a lightweight frame, same as the original. Accents are in aluminum, brass, leather, wood and resin.
-
B-29 3D Model
Boeing’s B-29 Superfortress was the most sophisticated, propeller-driven, bomber to fly during World War II, and the first bomber to house its crew in pressurized compartments. Boeing installed very advanced armament, propulsion, and avionics systems into the Superfortress. During the war in the Pacific Theater, the B-29 delivered the first nuclear weapons used in combat. On August 6, 1945, Colonel Paul W. Tibbets, Jr., in command of the Superfortress “Enola Gay,” dropped an atomic bomb on Hiroshima, Japan. Three days later, Major Charles W. Sweeney piloted another B-29 named “Bockscar” and dropped a second atomic bomb on Nagasaki, Japan. On August 14, 1945, the Japanese accepted Allied terms for unconditional surrender. After the war, B-29s were adapted for several functions, including in-flight refueling, anti-submarine patrol, weather reconnaissance and rescue duty. The B-29 saw military service again in Korea between 1950 and 1953, battling new adversaries: jet fighters and electronic weapons. The last B-29 in squadron use retired from service in September 1960.
-
P-47 thunderbolt 3D Model
Two textures are included.One is “In the mood” and the other is “My Gal Sal”. “in the mood” P-47 was flown by Capt Gerald Johnson.One of five different P-47 ‘razorbacks’ Johnson flew and the first ‘Ace’ from the 56FG. The art work is dirived from the popular Glenn Miller song. Johnson was credited with a total of 16.5 aerial and retired from the Air Force as Inspector General in September 1974.
-
B-1B Lancer 3D Model
The B-1B is a multi-role, long-range bomber, capable of flying intercontinental missions without refueling, then penetrating present and predicted sophisticated enemy defenses. It can perform a variety of missions, including that of a conventional weapons carrier for theater operations.
-
F15e 3D Model
The first texture is for 335th Fighter Squadron ‘Chiefs’. It attends the ‘Enduring Freedom’ operation in Iraq. The models also includes the following items: GBU-10 Paveway II 2000lb laser-guided bomb Mk 20 Rockeye cluster bomb AGM-65 Maverick air-to-surface missile AIM-120 AMRAAM medium-range air-to-air missile AIM-9M Sidewinder air-to-air missile LANTIRN system targeting pod Texas Instruments terrainfollwing radar pod AN/ALQ-119 ECM pod The second texture is for Israel Air Force. The models also includes the following items: Adder IV air-to-air missile AIM-120 AMRAAM medium-range air-to-air missile Please contact ucabqji@ucl.ac.uk for more information. All texture is 150 dpi resolution. Considerable space has been contributed to the texture and will not affect the runing speed when using the file.
-
Northrop F-5 B Agressors schemes 3D Model
The F-5B was the two-seat version of the F-5A. It was generally similar to the single-seat F-5A but had two seats in tandem for dual fighter/trainer duties. The two crew members sit in tandem rocket-powered ejection seats, and are separated from each other by a windscreen to protect the instructor from windblast in the event of an ejection. The cockpits have separate manually-operated rearward-hinged jettisonable canopies. The instructor’s seat in the rear is raised 10 inches higher than that of the pupil in front to give an improved forward view. The length of the fuselage was the same (46 feet 4 inches) as that of the T-38.The fuselage of the F-5B is quite similar to that of the T-38 Talon two-seat trainer, so similar, in fact, that one must look twice to tell the difference between the two aircraft. Unlike the T-38A, the F-5B retains the wing leading edge flaps and wing root extension of the F-5A, which is perhaps the easiest way to tell the difference between a F-5B and a T-38A. Other differences between the F-5B and the T-38A are a bit more subtle. The F-5B has a braking parachute housing at the rear of the vertical stabilizer just above the engine exhausts, which the T-38A lacks. The F-5B has a double fork on its noseweel in area and lack the square splitter plates of the F-5B.The F-5B was fully combat-capable and was capable of carrying the same external ordnance load as the single seat F-5A. However, the nose cannon armament of the single-seat version was deleted. The takeoff weight was 19,700 pounds, considerably greater than the T-38s 11,700 pounds.Here come with two schemes , USAF agressors in ghost blue & MARINES agressors in desert scheme.
-
Northrop F-5 B Spanish Air Force schemes 3D Model
The F-5B was the two-seat version of the F-5A. It was generally similar to the single-seat F-5A but had two seats in tandem for dual fighter/trainer duties. The two crew members sit in tandem rocket-powered ejection seats, and are separated from each other by a windscreen to protect the instructor from windblast in the event of an ejection. The cockpits have separate manually-operated rearward-hinged jettisonable canopies. The instructor’s seat in the rear is raised 10 inches higher than that of the pupil in front to give an improved forward view. The length of the fuselage was the same (46 feet 4 inches) as that of the T-38.The fuselage of the F-5B is quite similar to that of the T-38 Talon two-seat trainer, so similar, in fact, that one must look twice to tell the difference between the two aircraft. Unlike the T-38A, the F-5B retains the wing leading edge flaps and wing root extension of the F-5A, which is perhaps the easiest way to tell the difference between a F-5B and a T-38A. Other differences between the F-5B and the T-38A are a bit more subtle. The F-5B has a braking parachute housing at the rear of the vertical stabilizer just above the engine exhausts, which the T-38A lacks. The F-5B has a double fork on its noseweel in area and lack the square splitter plates of the F-5B.The F-5B was fully combat-capable and was capable of carrying the same external ordnance load as the single seat F-5A. However, the nose cannon armament of the single-seat version was deleted. The takeoff weight was 19,700 pounds, considerably greater than the T-38s 11,700 pounds.Here come with two schemes , from Ala 23 trainer and the old lizzard scheme from Ala21 in Moron ( now Ala 11 with Eurofighters ).
-
McDonnell Douglas F-4 D Phantom Iranian Air Foprce scheme 3D Model
The F-4D joined combat forces in Southeast Asia in May 1967. The F-4D relegated most of the F-4Cs to the ground attack role while the F-4Ds were tasked with air to air interception duties. In addition to the AIM-7 Sparrow and AIM-9 Sidewinder, the F-4D was also capable of firing the Falcon missile. The Falson missile proved to be a failure, and after a brief trial period it was withdrawn from Vietnam combat service. The F-4 proved its worth in combat 05 June 1967, when a crew from the 555th Tactical Fighter Squadron downed a MiG-17 with an AIM-7 Sparrow missile. F-4Ds were the first aircraft to use laser guided munitions carrying GBU-1O/B Mk 84 Laser guided bombs in May 1968. USAF F-4s also flew reconnaissance and “Wild Weasel” anti-aircraft missile suppression missions.
-
McDonnell Douglas F-4 D Phantom USAF scheme 3D Model
The F-4D joined combat forces in Southeast Asia in May 1967. The F-4D relegated most of the F-4Cs to the ground attack role while the F-4Ds were tasked with air to air interception duties. In addition to the AIM-7 Sparrow and AIM-9 Sidewinder, the F-4D was also capable of firing the Falcon missile. The Falson missile proved to be a failure, and after a brief trial period it was withdrawn from Vietnam combat service. The F-4 proved its worth in combat 05 June 1967, when a crew from the 555th Tactical Fighter Squadron downed a MiG-17 with an AIM-7 Sparrow missile. F-4Ds were the first aircraft to use laser guided munitions carrying GBU-1O/B Mk 84 Laser guided bombs in May 1968. USAF F-4s also flew reconnaissance and “Wild Weasel” anti-aircraft missile suppression missions
-
Douglas A-1 J Skyraider Night Attack version 3D Model
The Douglas A-1 Skyraider was an american single-seat attack aircraft that saw service between the late 1940s and early 1980s. The Skyraider had a remarkably long and successful career; it became a piston-powered, propeller-driven anachronism in the jet age, and was nicknamed ‘Spad’, after the French World War I fighter.It was operated by the United States Navy (USN), the United States Marine Corps (USMC), and the United States Air Force (USAF), and also saw service with the British Royal Navy, the French Air Force, the Republic of Vietnam Air Force (VNAF), and others. It remained in U.S. service until the early 1970s. Now with Night Attack Scheme called Night Hunters. Three more schemes added on pack, USAF normal, South Vuietnam & Navy scheme.
-
Alenia C-27J Spartan 3D Model
This model faithfully portraits the Alenia C-27J Spartan. The C-27J is an advanced derivative of Alenia Aeronautica’s G.222 (C-27A Spartan in U.S. service), with the engines and systems of the Lockheed Martin C-130J Super Hercules. The aircraft was selected as the Joint Cargo Aircraft (JCA) for the United States military. The model is created in 3dsMax 2010 (fully compatible with 3dsMax 2010 and above).With its state of art quality it’s ready for all projects including virtual training/professional movie project/still render/etc. All thumbnails are rendered straight out of the package.Main product includes:1. 3dsmax 2010 model (with scanline setting). It utilizes 3dsMax’s default render engine and does not require any plug-ins.2. 3dsmax 2010 model (with vray setting)
-
Senior Pilot USAAF Wings Badge 3D Model
US Air Force Senior Pilot Badge 3D modelHigh Poly, textured model of a USAF Pilot Badge.Mental Ray materials are included.Sbdivision level 0 only in 3dsMax scene available.In OBJ, 3ds and FBX subdivision level 2.The United States Aviator Badges were issued to members of the Air Service during the First, the Second World War and today.The Senior Pilot wings look the same as the Pilot wings but with a star over the shield. These wings were given to pilots who had given five years of service and at least 1,500 hours in flight.
-
C-5 Galaxy USAF TRAVIS Free 3D Model
Cargo US Force USAF C5 C-5 C 5 lockheed galaxy aircraft air military american army giant airplane transporter vehicle jet travis
-
B17 3D Model
Accurate Boeing B17G Bomber. 3dsmax 2012 and 2015 files included.Ready to animate. all pivot point’s in placeI have left the textures unmarked so you can put what ever markings you want on the aircraft easily. i have also included a USAF roundal and a few 1940’s pin ups you are free to use to give your b-17 unique markings.NOTE Depending on disk topography some textures may need to be re applied.TEXTURE SIZE 7680 x 4320
-
F 117 NightHawk 3D Model
Lockheed F-117 F117 F 117 Nighthawk stealth US aircraft air force attack usaf combat military fighter jet plane bomber realistic 3d model
-
UH60 Blackhawk Helicopter 3D Model
UH60 Blackhawk Helicopter Military US Army Helo Chopper Gunship Assault Transport UH60L UH60M Black Hawk Gulf War UH-60 UH USAF Medevac UH60A Game Mod HUS1 HUS 1
-
UH1 Basic Helicopter 3D Model
Sikorsky Blackhawk UH-60M UH 60 M military helicopter navy us airforce 60M fighter utility aircraft war army usaf black hawk desert uh-60 abjet R2
-
A-26B Invader 3D Model
a-26 b-26 invader counter-invader attack bomber airplane plane aircraft usaf ww2 wwii korea vietnam propeller bimotor warbird animated materials
-
Airplane fa5 N110609 3D Model
Northrop Grumman FA5 F-AandB FA 5 F-5F Tiger supersonic light fighter aircraft airplane plane jet jet-fighter military air force US USAF
-
Airplane fa5 N110609 3D Model
Northrop Grumman FA5 F-AandB FA 5 F-5F Tiger supersonic light fighter aircraft airplane plane jet jet-fighter military air force US USAF
-
Gen Dyn F-111 Aardvark V03 USAF 3D Model
F-111 f111 Aardvark General Dynamics bomber airplane aircraft plane fighter jet cockpit military recon RAAF USAF air force
-
RT-F15E 3D Model
F15 F-15 Eagle StrikeEagle F15E F-15E Fighter Jet Aircraft Warfare USAF American Air Gulf Iraq Strike Bomber Aviation Airforce Aircraft Airplane
-
F-16 52D 3D Model
F-16 F16 52D fighter Force combat Aircraft fighters Jet maneuverability LWF missiles interceptors USAF Air 3d model perspectx
-
Northrop F-5E Tiger V02 USAF 3D Model
Northrop Grumman F-5 F-AandB F-5E F-5F Tiger supersonic light fighter aircraft airplane plane jet jet-fighter military air force US USAF
-
Boeing B-52D Stratofortress V02 3D Model
Boeing B52 B-52 B-52D Stratofortress military bomber jet USAF US Army Air Force airplane aircraft plane propeller eight-engine bombs
-
Helicopter Free 3D Model
Sikorsky Blackhawk UH-60M UH 60 M military helicopter navy us airforce 60M fighter utility aircraft war army usaf black hawk desert uh-60
-
Helicopter 1 Free 3D Model
Sikorsky Blackhawk UH-60M UH 60 M military helicopter navy us airforce 60M fighter utility aircraft war army usaf black hawk desert uh-60
-
Northrop Grumman EA-6B Prowler 3D Model
Northrop Grumman EA-6B Prowler EA 6B EA6B A-6 Intruder USAF mid-wing aircraft jet perspectx 3d model attack Air Force Navy USN USMC US Marine
-
Raytheon T-6A Texan 3D Model
T-6A Texan II T6 T-6 Raytheon trainer aircraft airplane military training plane USAF air force
-
Fairchild Republic A-10 Thunderbolt II 3D Model
High quality polygonal model, correctly scaled for an accurate representation of the original object.Model is fully textured with all materials applied.(Corona).File Formats:- 3ds Max 2012 (Corona).Textures Formats:- (2 .png) 8192 x 8192- (4 .png) 4096 x 4096
-

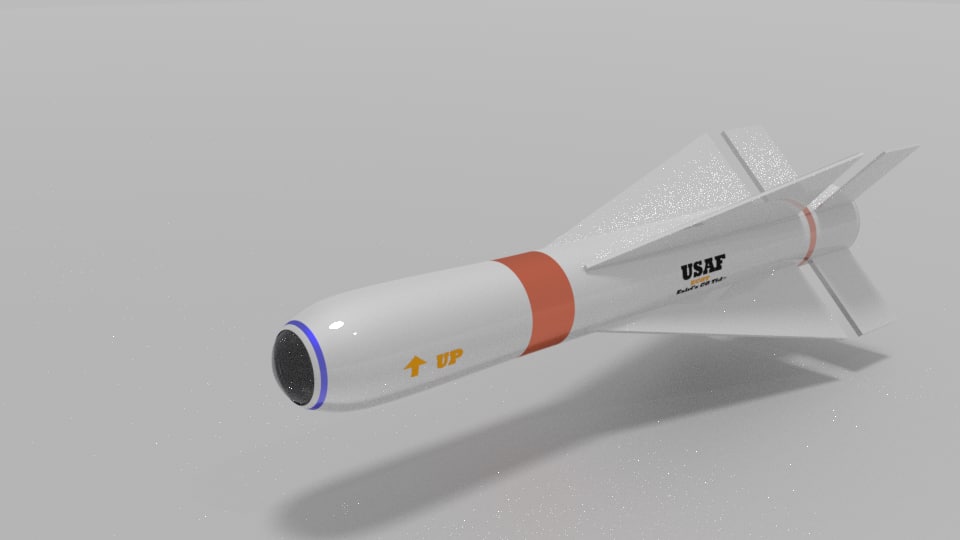

3D AGM-65 Missile 3D Model
AGM-65 missile 3D model3D AGM-65 MaverickRendered with blender cycles;Can be used for games and animation, or military simulations;formats include;.unitypackage..blend..stl..FBX..3ds..obj
-
A-10 Thunderbolt II (CT ANG) 3D Model
Extremely detailed, LASTE modified USAF A-10A with separate flight control surfaces, landing gear, canopy, ejection seat and tubular boarding ladder.Markings are for a special Connecticut Air National Guard jet. Markings are hstorically accurate.This is by far the most accurate 3d model available of this subject.There are no third party plugins required for rendering or animating.As with all Mesh Factory 3d models, this one features extremely clean geometry, intelligent parts break-down, and is fully textured with all texture maps included. Rest assured our work consistently surpasses the requirements of any 3d certification process currently in use anywhere. Our output quality and attention to detail is second to none.This 3d model and all of its associated texture maps were created by ([Author]) for Mesh Factory.NOTE: This 3d model is an artistic digital representation of the subject matter. Mesh Factory does not endorse and is not endorsed by the manufacturer of the subject matter.
-

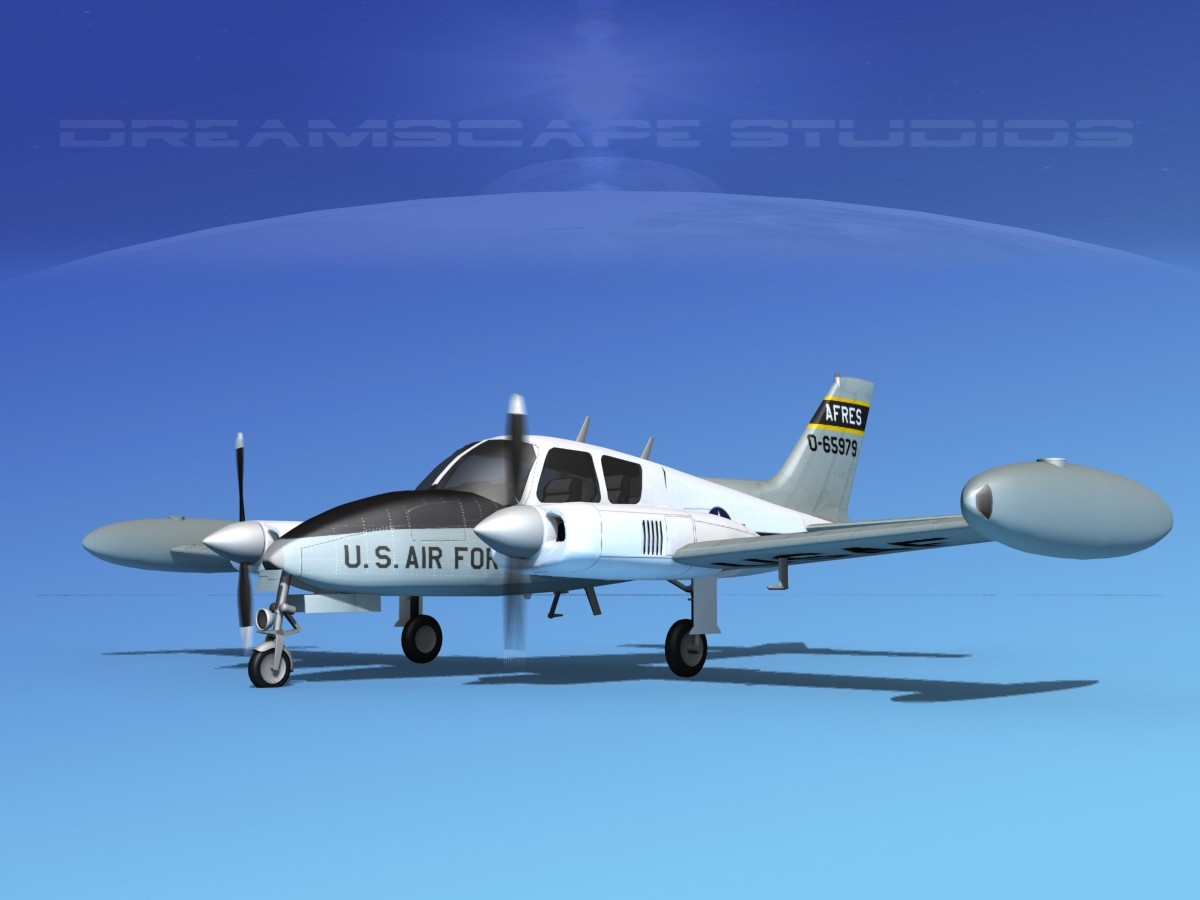

Cessna U-3 USAF 3D model 3D Model
This model was built near to scale, within 3% of general dimensions. It includes a lot of exterior detail and general cabin and cockpit modeling. The model is fully textured. It is representative of the Cessna U-3B built in 1964. This model also has animateable landing gear retraction, flaps, landing gear doors, ailerons, elevators and rudder as well as animated propellers. This model also has engines and oil coolers modeled and textured. Tires and wheels are animateable also. The model includes a textured instrument panel and some animateable controls. It is available in several formats for a wide variety of end users.This model comes with different liveries. The model is built to be used in in-flight or airport ground animations and video or simulation. It can also be used to populate an airport scene. The Cessna 310 was a six seat twin-engine monoplane designed for the civilian market. It was however ordered by the military in numbers to be used as a multi-engine trainer, liaison aircraft and VIP transport in the US Air Force, US Navy and US Army. It was also purchased and operated by other militaries around the world.
-

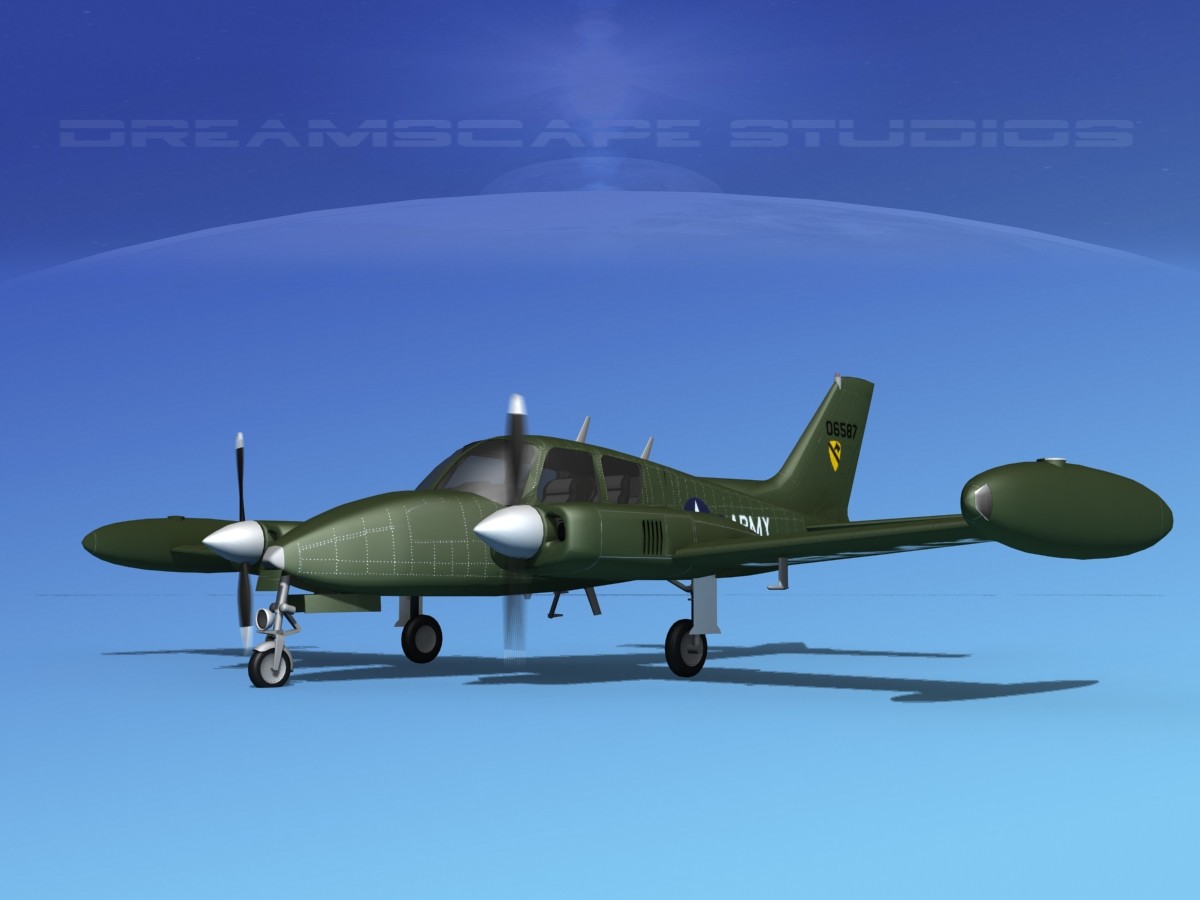

Cessna U-3 US Army 3D Model
This model was built near to scale, within 3% of general dimensions. It includes a lot of exterior detail and general cabin and cockpit modeling. The model is fully textured. It is representative of the Cessna U-3B built in 1964. This model also has animateable landing gear retraction, flaps, landing gear doors, ailerons, elevators and rudder as well as animated propellers. This model also has engines and oil coolers modeled and textured. Tires and wheels are animateable also. The model includes a textured instrument panel and some animateable controls. It is available in several formats for a wide variety of end users.This model comes with different liveries. The model is built to be used in in-flight or airport ground animations and video or simulation. It can also be used to populate an airport scene. The Cessna 310 was a six seat twin-engine monoplane designed for the civilian market. It was however ordered by the military in numbers to be used as a multi-engine trainer, liaison aircraft and VIP transport in the US Air Force, US Navy and US Army. It was also purchased and operated by other militaries around the world.
-

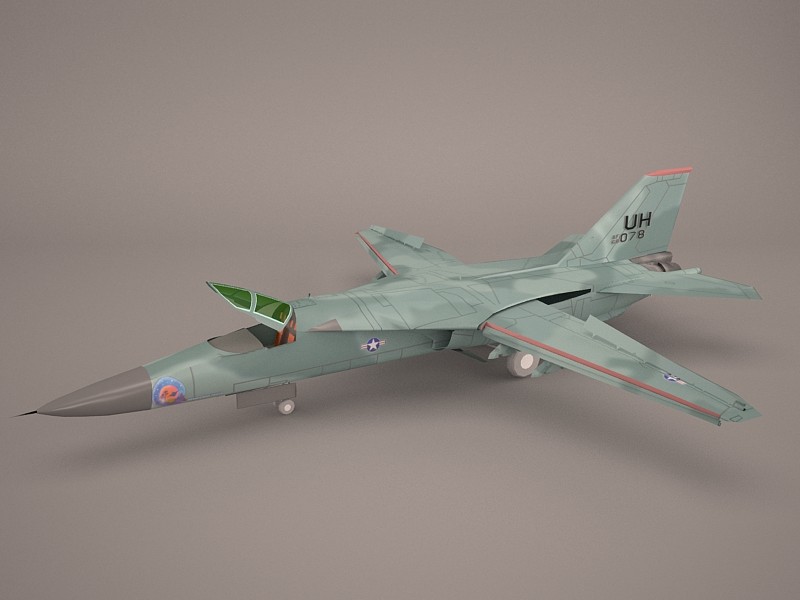

Gen Dyn F-111 Aardvark V02 USAF
F-111 f111 Aardvark General Dynamics bomber airplane aircraft plane fighter jet cockpit military recon RAAF USAF air force
-
3D agm-114 Hellfire
Aircraft Missile AGM-114 hellfire is a high quality model.Fully detailed, textured model. Detailed for close-up renders.Comes with detailed texture(4096×4096).Final images rendered with vray and element 3d(Specially optimized). No special plugin needed to open scene. All textures and materials are included and mapped.The 3ds max zip file contains also vray and standard materials scenes.The models are made with much attention to details. They have a reasonable amount of polygons and accurate grids.Available formats:*.max Scanline – with Standard materials for 3ds max 2013 or higher*.max V-Ray – with materials for V-ray*.fbx – with mapping without materials*.obj – with mapping without materials*.obj – Specially optimized for element 3d*.e3d – element 3d fileEnjoy!
