  • Interlocking MacBook Pro Retina Stand for Smaller Printers 3D Print Model

    Interlocking MacBook Pro Retina Stand for Smaller Printers 3D Print Model

    Summary
    For those of you with a smaller printer like me, this interlocking remix of Thomasdc_’s geometric MacBook Pro Retina Stand (https://www.thingiverse.com/thing:1330829) will allow you to print this great stand in multiple parts without having to glue or fasten anything together.
    The parts are an interlocking slide fit that’s very secure, and is best assembled via tapping them together with a weighted object (i.e. small hammer or large wrench)
    The gap in the interlocking pieces is 0.15mm so layer heights above this will be tight. I have printed at 0.175 and it’s a nice tight fit.
    Print Settings
    Printer:
    Monoprice Select Mini Rafts:
    No Supports:
    No Resolution:
    0.175mm Infill:
    20% Notes:
    Note that gap between interlocking parts is 0.15mm. Layer heights will affect the fit of these parts because of orientation of the locking features. They are oriented this way because the stand is very sturdy as a result and doesn’t require glue.
    Post-Printing
    Inspect the interlocking channels for zits and other inconsistencies clean the up as required. Mine came out nice and didn’t require any clean up.
    How I Designed This
    I traced the .STL file in Fusion 360 and created my own part splits and locking features once I had the outline traced. I changed the bracing just because I like the look of triangles.

  • Self-Intersecting Torus 3D Print Model

    Self-Intersecting Torus 3D Print Model

    Here’s something fun I made in blender. The photograph is of one after a layer of light blue, Rustoleum, textured spray paint.

  • Self-Intersecting Torus with Twist 3D Print Model

    Self-Intersecting Torus with Twist 3D Print Model

    This is an adaptation of my earlier model:https://cults3d.com/en/art/self-intersecting-torus

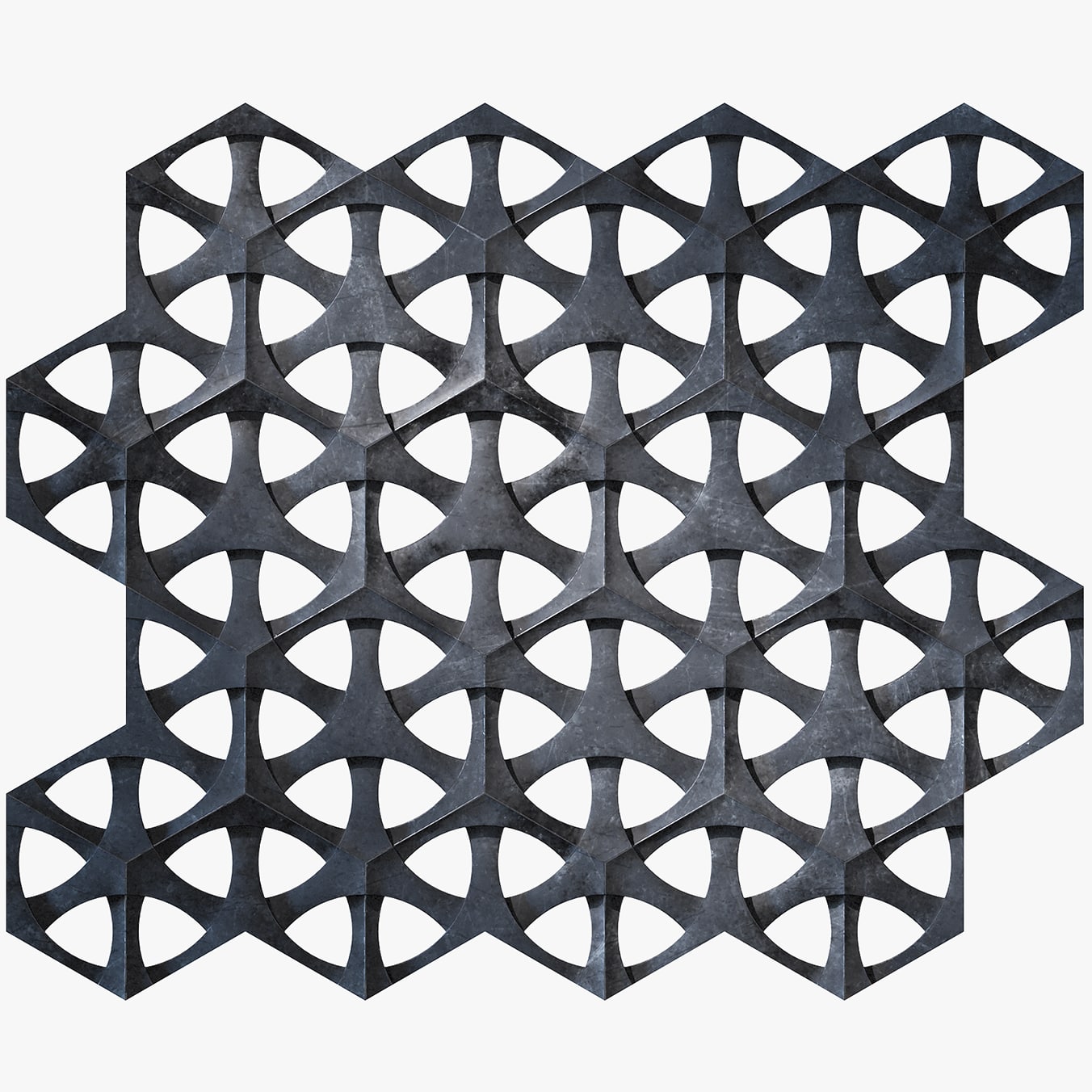

  • Interlocking Wall Blocks 3D Model

    Interlocking Wall Blocks 3D Model

    Decorative seamless wall panelFor architectural interior/exterior usage.Dimesion aprox. 1000mm*1000mmPerfect tileable on x/y axis.Scene set to mm. Scene use Vray 3.4 plugin.Interior showed in preview images are not included!!Material used – vraymtl (2 different materials so you can choose the one that fits best)8 textures in jpeg 4096*4096 (diffuse, reflection map, glossy map, etc)Clean edge flow, subdiviable topologyPolycount for 1 panel without turbosmoothpoly 43.104verts 43.166Model have been unwarped nicely.ENJOY!!

  • Decorative Modular Wall In Circle 3D model 3D Model

    Decorative Modular Wall In Circle 3D model 3D Model

    Decorative seamless wall panelFor architectural interior/exterior usage.Dimesion 1000mm*1000mm, one block as in preview imagePerfect tileable on x/y axis.Scene set to mm. Scene use Vray 3.4 plugin.Interior showed in preview images are not included!!Material used – vraymtl (2 different materials, dark and white so you can choose the one that fits best)10 textures in jpeg 4096*4096 (diffuse, reflection, glossy, IOR, normal map, etc)Clean edge flow, and subdiviable tolologyPolycount for 1 panelpoly 63.134verts 66.761Model have been unwarped nicely.ENJOY!!

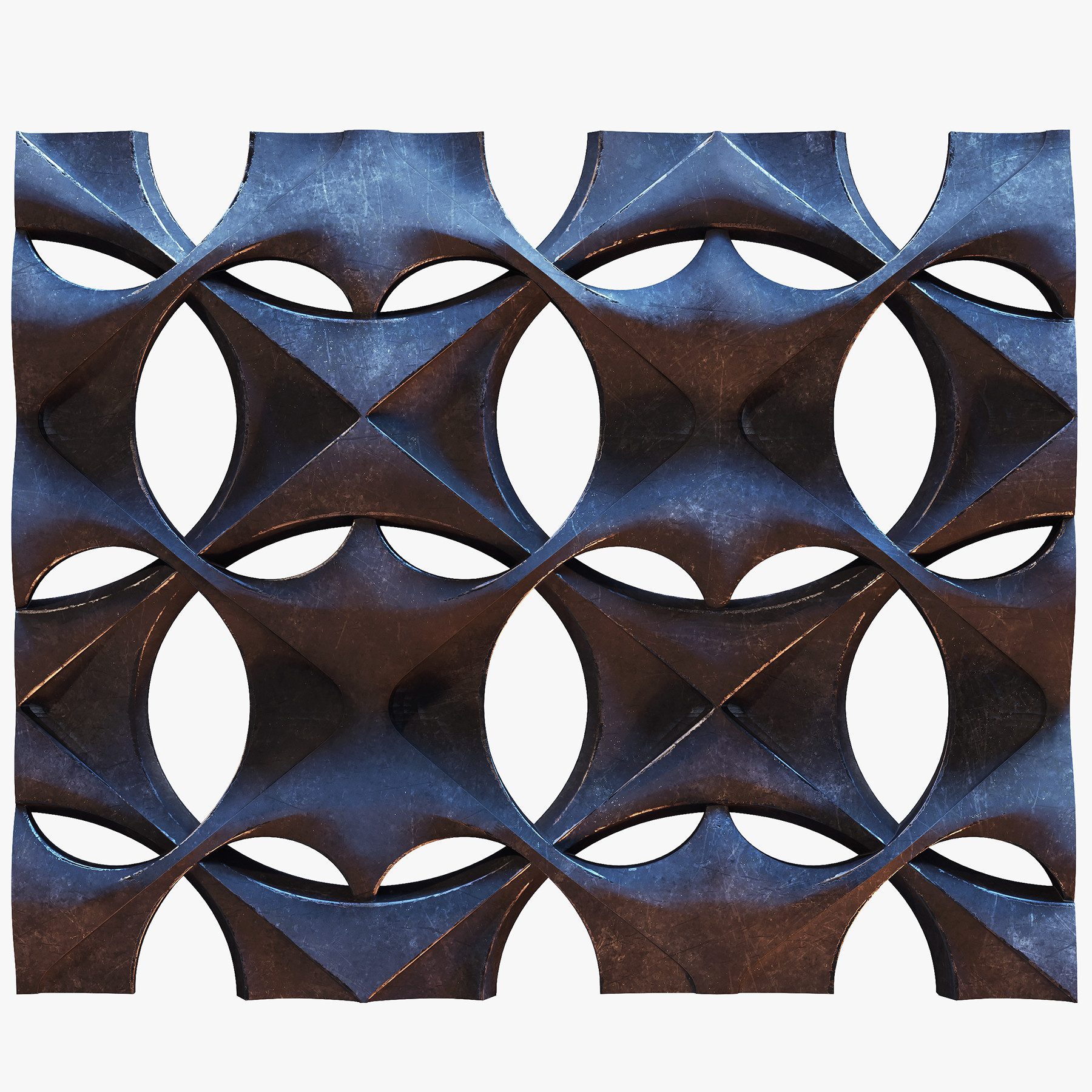

  • 3D Modular Wall Block

    3D Modular Wall Block

    Decorative seamless wall panelFor architectural interior/exterior usage.Dimesion approx. 1175*1430mm, one block as in preview imagePerfect tileable on x/y axis.Scene set to mm. Scene use Vray 3.4 plugin.Interior showed in preview images are not included!!Material used – vraymtl (2 different materials so you can choose the one that fits best)8 textures in jpeg 4096*4096 (diffuse, reflection, glossy, IOR, etc)Clean edge flow, most quad and a few traingles.Polycount for 1 panelpoly 26.658verts 27.487Model have been unwarped nicely.ENJOY!!
