  • Uk to USA Plumbing Adaptor 32mm (1-1/4 BSP) to USA 1-1/2 Schedule 40 Fittings 3D Print Model

    Uk to USA Plumbing Adaptor 32mm (1-1/4 BSP) to USA 1-1/2 Schedule 40 Fittings 3D Print Model

    Summary
    I needed a 32mm threaded UK style plumbing adapter to it a USA style schedule 40 P trap.
    In true maker fashion i knocked on up on the 3d Printed.
    UK Style 32mm / 1-1/4 BSP Female Thread to USA Style 1-1/4 male.
    Used a small o ring in the bottom of the threaded section to help seal.

  • Background Stand – Hotshoe Adaptor 3D Print Model

    Background Stand – Hotshoe Adaptor 3D Print Model

    Summary
    I created this adaptor to allow me to reuse a couple of very old background stands that I had in storage, I repurposed them to act as lighting stands for my two LED panels, both of which come with hot-shoe attachments as standard.
    Printed in Fillamentum PLA Extrafill Electric Grey
    The initial release is a little bit rough and ready but works perfectly for me, I will be refining the design and adding other options in the future.
    For info, the hole that the background pole slides into is 11mm in diameter

  • M24 to M22 UK tap adaptor 3D Print Model

    M24 to M22 UK tap adaptor 3D Print Model

    Summary
    I needed a tap connector for an ebay special tap aerator, unfortunately the tap has a 24mm thread and the aerator a 22mm thread.

  • 15 mm thru-axle to 9 mm QR front adaptor 3D Print Model

    15 mm thru-axle to 9 mm QR front adaptor 3D Print Model

    Summary
    NOT FOR 3D PRINTING.
    Machining is probably best for this.
    Measurements taken from the adaptor that comes with Shutter Precision/Exposure QR15 dynamo hubs.
    It’s a bit of a loose fit to the nominal 15 mm ID on the hub. You can certainly make it to better tolerances. I just copied what I measured.

  • Monoprice Select Mini E3D V6 heat sink adaptor 3D Print Model

    Monoprice Select Mini E3D V6 heat sink adaptor 3D Print Model

    Summary
    This is a bracket for holding the Bowden stype E3D V6 heat sink/hot end on the Monoprice Select Mini. It is sized so that it will be at the same level as the original that came with it so no adjustment to the z axis limit switch is necessary.
    I used 2.5mm melt in threaded inserts, available from McMaster Carr:https://www.mcmaster.com/#94180A321.
    I used 3mm melt in inserts for the clamp that holds the heat sink in, again from McMaster Carr.
    Installation tool is right next to it on order page. You can also use a nut with a through drilling if you like..

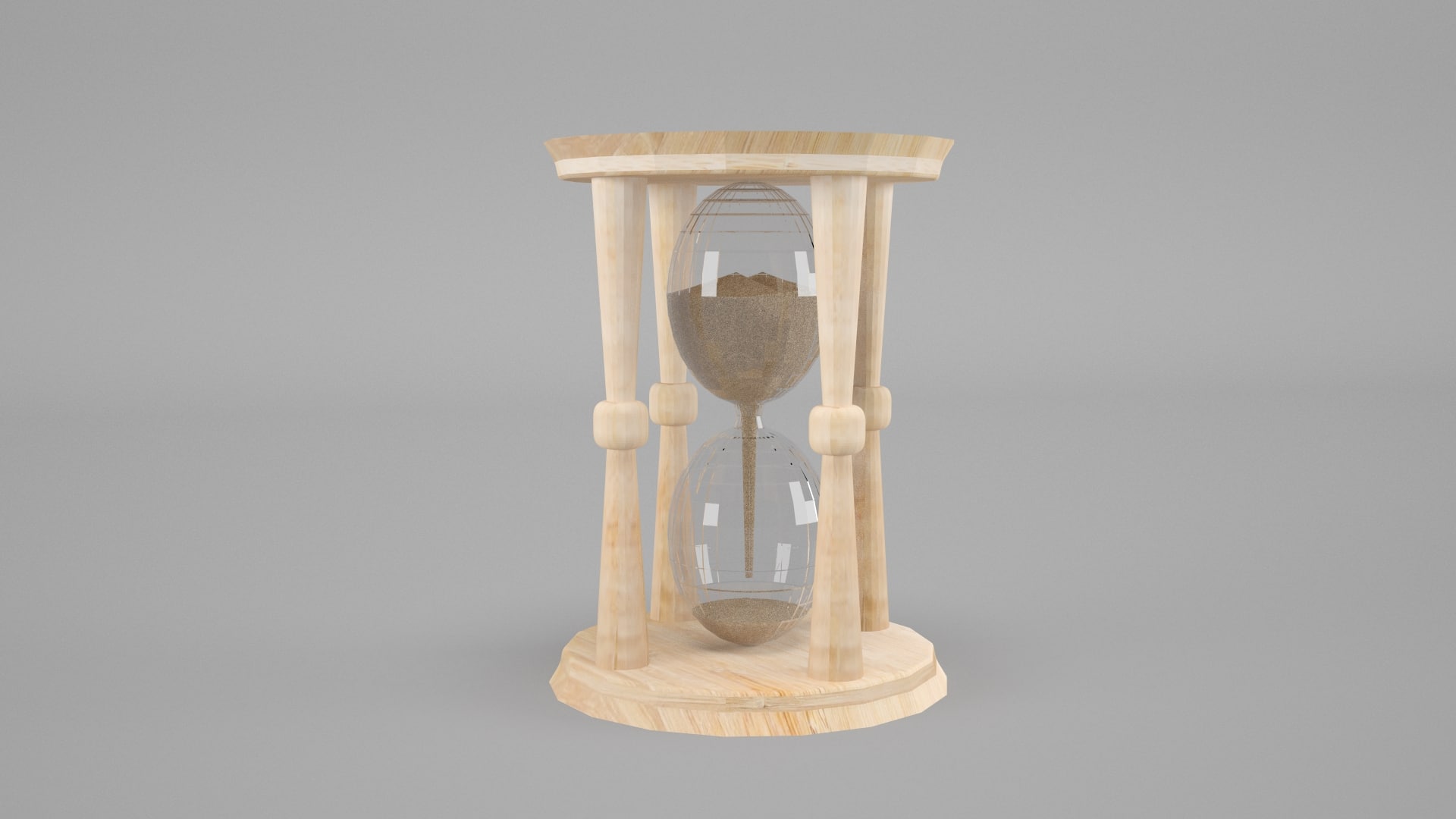

  • sand watch 3D Model

    sand watch 3D Model

    phone charger powerbank adaptor

  • Angled adaptor for Oculus Rift sensor camera 3D Print Model

    Angled adaptor for Oculus Rift sensor camera 3D Print Model

    Summary
    This adaptor screws onto a standard photography tripod, or onto the original rift sensor stand. It is designed to give the sensor more downwards coverage, for when the sensor is positioned in a high corner.
    I implemented a “kink” or offset in an attempt to keep the correct center of gravity, but in retrospect, it really wouldn’t have mattered – the sensors are quite light-weight.
    See this for good roomscale setup tips:https://www.oculus.com/blog/oculus-roomscale-tips-for-setting-up-a-killer-vr-room/
    I use this app to visualise and tweak the sensor placement/coverage from within VR:https://www.wearvr.com/apps/desk-scene-check-your-camera-bounds

  • jack audio adapter 3.5 mm to 6.5 mm model 3D Model

    jack audio adapter 3.5 mm to 6.5 mm model 3D Model

    3d model of Hosa adapter GMP-386 1/4 in TS to 3.5 mm TRS.Model consists of one parts. The adapter is at the origin.* Real-world scale (Millimeters)
