Summary
C_Battery Flashlight change for 18650 Li_battery
C_battery x 5 change for 18650 Libattery x2 。
18650 to C_Battery x1
C Battery-Ext 105mm x1
C Battery-Ext EndCap x2
Print Settings
Printer:
CR-8
Rafts:
No
Supports:
Yes
Infill:
30
Tag: -18650
-
18650 to C-Type Battery Flashlight 3D Print Model
-
dual unregulated mod. 18650 Vape 3D Print Model
Summary
nice box mod with mosfet and 15Kohms resistor. I purchased other supplies on aliexpress for 8 bucks in total. I used neodym magnets from Geomag (3 mm high and 6 mm width)
How I Designed This
Easy design in TinkerCAD. It took me about 15 minutes -
eBike Water bottle 18650 case 3D Print Model
Summary
This is a WORK IN PROGRESS. I still plan to make a full cover, the retainers are just temporary.
One of the pieces for an eBike project I’m making at my shop with things I’ve scavenged. It holds 8x 18650 cells. I run them in 4x banks on each side (2up and 2 down) and bridge together on the top. It puts out just above 15v which is perfect for my motor.
MAKE SURE TO ALIGN THEM MIRRORED on each side, I will not be held responsible if you wire it incorrectly.
I also just used IO shields that I cut down for terminals, proper terminal material would be better, but it works for my testing needs. If you have material that will fit inside of a spade connector, that would be ideal.
The spacing for the water bottle holder screws on my bike is 67mm, if yours is the same, it should mount right up. I made the holes a little small so I could drill it out to have a clean edge to thread into and adjust for screw head size, so keep that in mind. -
battery holder 18650 wismec style 3D Print Model
Summary
based on the wismec 2gen -
18650 Slim single box mod 3D Print Model
Summary
This is new version of single box mod.
Parts needed:https://www.fasttech.com/products/0/10011690/2013501-diy-spring-loaded-firing-button-for-mechanical-mod
-https://www.fasttech.com/products/0/10011689/3441401-510-connector-w-solder-ring-terminal-for-e
-cheap chinese voltmeter (check dimensions my is 11x23mm)
5x5x2mm magnets
5mm tact switch for switching woltmeter
Contacts for battery are made from brass sheet, bent and hot glued at the bottom.
Print Settings
Supports:
Yes Resolution:
0.15 Infill:
15% -
Mmagnetic holder Li-Ion battery 18650 3D Print Model
Summary
Magnetic holder
holder: Li-Ion battery 18650 – 3 pcs.
magnet: D 8 (mm) x h 3 (mm)
PLA / ABS
0.2 mm -
4s10p 18650 battery holder for 14.4 volt with 1/4 inch bolt holes and tab slots 3D Print Model
Summary
This is a 4s10p, 18650 battery holder for a 12 volts system (with a low voltage cutout and a DC-DC buck). Nominal voltage of 14.4 with a high of 16.8 volts. It holds 40, 18mm cells snugly.
I added a 1/4 inch bolt hole to bind everything together, mount to a case.
One of each file should be printed to get the tabbing and alignment correct. They’re labeled top and bottom, but they could be used the other way–top as bottom and bottom as top (or left side right side, etc).
Each staggered row should be tabbed down the middle with cells alternating anode – cathode – anode – cathode (in series) and bridged over the tabbing slots to the next row with the cells aligned the same as the previous (in parallel). If you don’t understand how this works, study up.
Built for my portable solar kit. -
17 Ah 18650 Battery Pack ( 3S5P ) 3D Print Model
Summary
This a enclosure for 15 18650 cells to make a Battery Pack. I used 3400 mAh cells to make the 17Ah -11.1 V Battery Pack.You can see the full project on my Instructables.https://www.instructables.com/id/DIY-Professional-18650-Battery-Pack/
Print Settings
Printer:
Creality CR_10 Rafts:
No Supports:
No Resolution:
0.3 Infill:
100 Notes:
Print Speed : 70 mm/s
Fill Density : 100%
Extruder Temperature : 205 degC
Bed Temp : 65 degC -
18650 Dispenser, Self Standing, Chunky (Dual version) 3D Print Model
Summary
Tall dual version of Chunky’s 18650 battery holder for 2×10 18650’s.
Print Settings
Printer:
Craftbot XL Rafts:
No Supports:
Yes Resolution:
0.3 Infill:
30 -
SX350J vape mod with 26650 or 18650 adapter V2. 3D Print Model
Summary
SX350J vape mod with 26650 or 18650 adapter V2.
For YiHi SX350J Boxer mod by Ginger Vaper, just disassemble the mod and transfer everything (except lower battery connector) into this enclosure. This enclosure only use 1 battery (26650 or 18650) so you can charge the battery directly using USB port. -
Magnetic 18650 Battery Case 3D Print Model
Summary
Magnetic Lid Battery case, holes are made for a 3mm x 1mm magnet.
case fits 3 18650 battery’s -
Solderless modulable 18650 Battery holder for 4 batteries 3D Model
modulable 18650 Battery holder for 4 batteries with holes for mounting solderless electrical terminals solderless, using nuts and bolts, modules can be joined and unjoined with ease , many 3d file formats can be donwloaded.can be used for your DIY projects such as e-bikes, boosted boards, RC, etc…
-
18650 holder 4 bank 5 cells remix PowerPlayground 3D Print Model
Summary
It’s a remix for a powerbank, with 4 bank 5 cells
Print Settings
Printer:
Dagoma Discovery 200 Rafts:
No Supports:
No Resolution:
0.15mm Infill:
33% -
FatShark 18650 battery end caps 3D Print Model
Summary
End caps to turn two 18650 batteries (like the famous NCR18650B from Panasonic) into a fatshark-compatible battery that stays in the strap like the original with these “ears” (I don’t know a better word for it) sticking out on both sides of the goggles’ strap.
A parameter in the scad file changes between both caps for your convenience.
I know, in the screenshot I use the “wrong” connector (XT60 instead of barrel) but that is due to a mod of my goggles. -

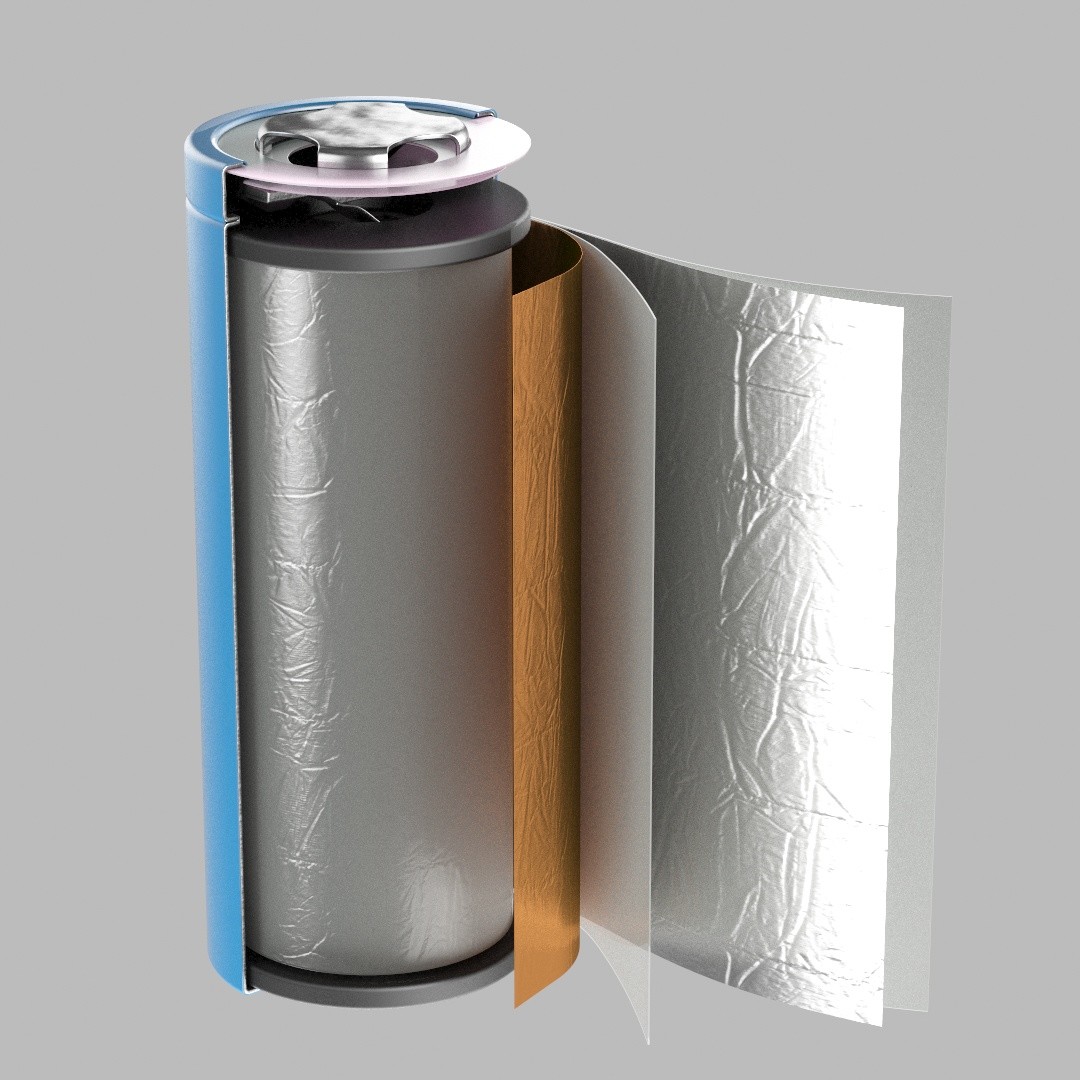

Animated Li-ion battery 18650 (internal organization) 3D Model
Internal device of the battery with animation of the opening of the foil of the anode and cathode. 3ds max 2014/2016: Completely rigged and animated model with vray materials and open modificator stack.FBX 2014: two static versions closed and open li-ion battery
